31.2 inch Solar-Powered Dual-Color E-Paper Display for Off-Grid Outdoor Digital Signage
Product Details
| Product Name: | 31.2 Inch Solar Outdoor Dual-Color E-Paper Display | Network: | 4G LTE, WiFi, Bluetooth 4.0, RJ45 Ethernet |
|---|---|---|---|
| Battery: | 54Wh LiFePO4 (2000+ Cycles, -15°C~65°C) | Controller: | MPPT (Max Power Point Tracking) |
| Installation Type: | Pole Mount (VESA 200x200 / 400x200) / Ground Anchor | Customization: | OEM/ODM: Housing Color, Logo, CMS Branding (MOQ 10 Units) |
| Highlight |
31.2 inch solar-powered e-paper display,dual-color outdoor digital signage,off-grid e-paper display |
||
Product Description

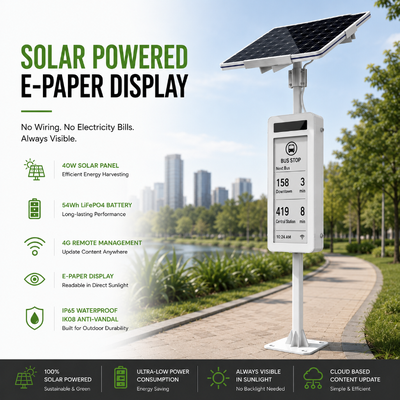

- 100% Off-Grid Solar Power: Integrated 40W monocrystalline panel & MPPT controller with a 54Wh LiFePO4 battery. Operates for 15-20 days without direct sunlight, eliminating grid connection and cabling costs.
- Sunlight-Readable E-Paper Tech: QHD (2560x1440) resolution with 300nit reflective display. Unlike LCDs, the e-paper screen becomes sharper and more vibrant as ambient light increases, offering 170° paper-like viewing with zero glare.
- Ultra-Low Power Architecture: Consumes just <0.01W when static (no power needed to retain an image). A full screen refresh uses <3.7W, making annual energy consumption under 2kWh.

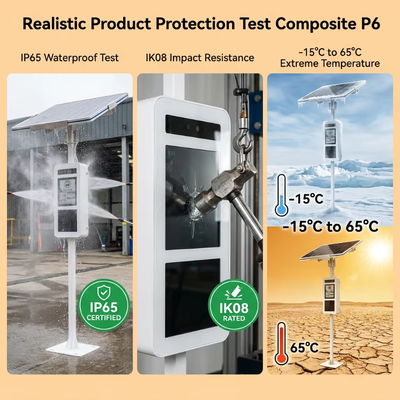

- Rugged All-Weather Design: Aviation-grade aluminum housing with IP65 waterproofing and IK08 impact resistance. Certified to operate flawlessly from -15°C to 65°C, withstanding monsoons, desert heat, and sub-zero winters.
- Smart 4G Cloud CMS (Android 14): Powered by Android 14 on a quad-core 2.4GHz processor. Remotely update content, schedule changes, and manage thousands of units via the Smart EPD platform or REST API.
- Bistable Zero-Standby Power: The physics of e-paper retains the last image indefinitely during a power cut or network outage, ensuring critical information (like bus schedules or emergency alerts) is always visible.
- Vandal-Resistant Construction: IK08-rated tempered glass front and concealed M12 security bolts meet municipal public infrastructure durability standards.
- Real-Time Data Integration: The cloud CMS connects to GTFS transit feeds, weather APIs, and emergency systems via REST API to auto-populate arrival times and alerts.
- Drastically Lower TCO (Total Cost of Ownership): Reduce installation cost by over 60% (no trenching/grid connection) and eliminate lifetime electricity bills. Over 5 years, operators save up to 90% compared to equivalent LCD installations.
- Simplified & Fast Deployment: Deploy signage anywhere without civil engineering. Only a concrete anchor and a cellular SIM card are needed. Project timelines are cut from months to days.
- Achieve ESG & Carbon-Zero Goals: Operates with zero carbon emissions and consumes less than 2kWh annually—helping transit authorities and smart cities meet stringent environmental compliance and reporting standards.
- Uninterrupted Operational Reliability: E-paper's bistable nature ensures content remains displayed even during network outages or complete power loss. No blank screens, ever.
- Future-Proof & Scalable: Android 14 platform supports long-term OS updates, security patches, and a growing ecosystem of smart city applications, ensuring your investment lasts.

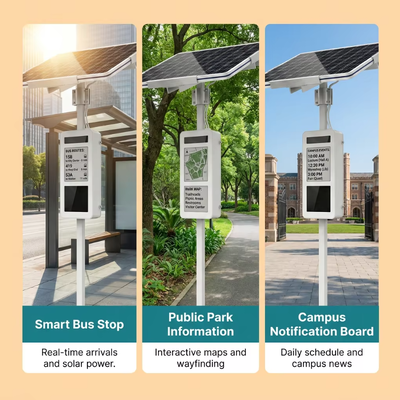

- North America & Europe (Smart Transit): Solar-powered bus stop arrival time displays, digital notice boards for bike-share stations, and EV charging station info screens. Meets public procurement requirements with CE, FCC, and RoHS.
- Middle East (High Heat & Glare): Outdoor wayfinding in desert climates, construction site signage, and corporate campus directories where traditional screens overheat or wash out in intense sunlight.
- Southeast Asia (Off-Grid & High Humidity): Remote park trail maps, fishing port market price boards, and rural community information centers where stable grid power is unavailable or unreliable.

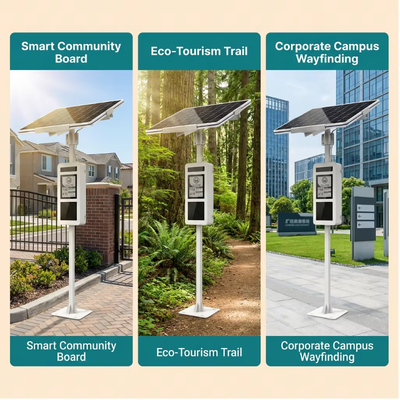

- Global System Integrators: Turnkey solution for smart campus projects, resort area maps, and temporary event signage requiring fast, low-infrastructure deployment.
- Minimum Order Quantity (MOQ): Low MOQ of just 10 units for OEM/ODM projects.
- Cosmetic Customization: RAL/Pantone housing colors, laser-engraved or adhesive logos, and custom screen printing.
- Software & CMS Branding: White-label the CMS with your domain, logo, and custom UI. Pre-load your proprietary APK on Android 14.
- Hardware Options: Screen size variants (10" to 43"), alternative battery capacities, and solar panel wattages available.
- Lead Time: 15-25 business days from final specification approval to shipment.
- True Factory Direct: You work directly with the production line owner. No middlemen means you get the best pricing, quality control, and priority support.
- Engineering Expertise: 15+ years of experience in commercial displays and outdoor digital signage. We don't just assemble; we design for thermal management, ingress protection, and long-term reliability.
- Certification Assurance: All units are certified with CE, FCC, RoHS, IP65 (IEC 60529), and IK08 (IEC 62262). Full test reports are provided for your tender submissions.
- Global Shipping & Logistics: Proven export experience to North America, Europe, Middle East, and Southeast Asia with secure packaging and fast door-to-door delivery.
Product Highlights
31.2 inch Solar E-Paper Display | Off-Grid Outdoor Digital Signage Embrace the future of sustainable outdoor communication with the S312EC-O, a 31.2-inch solar-powered dual-color e-paper display. Engineered specifically for off-grid and smart city applications, this digital signage solution operates ...
