31.5 Inch CMYKW E-Paper Display with IP65 Protection for Outdoor Solar Signage
Product Details

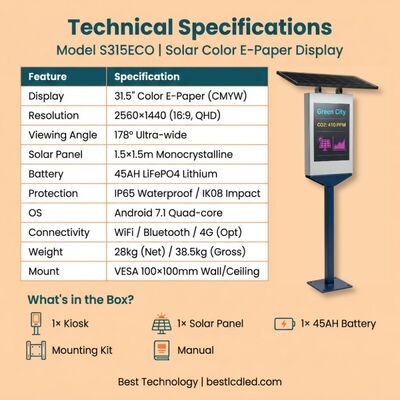

| Product Name: | 31.5" Outdoor Solar Color E-Paper Display | Display Technology: | CMYKW (Cyan, Magenta, Yellow, White) E-Paper |
|---|---|---|---|
| Brightness: | Reflective (300 Nits Equivalent) / Sunlight Readable | Active Power: | ≤ 3.7W (During Refresh, <2 Seconds) |
| Battery: | 45AH LiFePO4 (Lithium Iron Phosphate) | Customization: | Housing Color, Logo, Software, Battery, Panel Size |
| Highlight |
31.5 inch CMYKW e-paper display,IP65 protected outdoor signage,solar-powered digital signage display |
||
Product Description

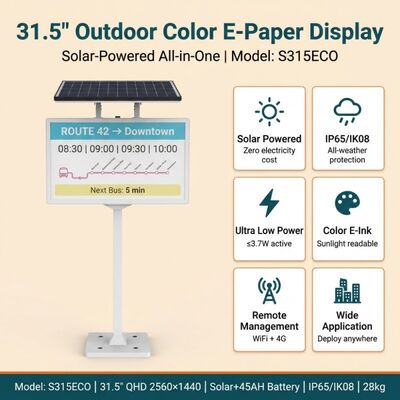

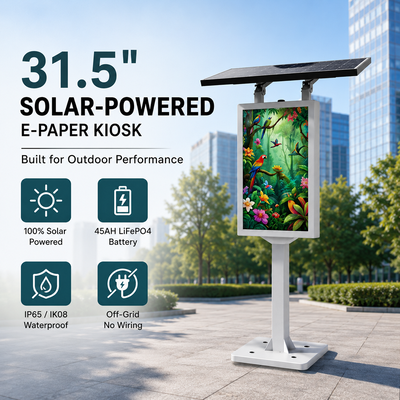

Introducing the S315ECO, a revolutionary 31.5-inch color e-paper display that brings the print-like quality of CMYKW (Cyan, Magenta, Yellow, White) particles to harsh outdoor environments. Unlike LCD or LED signage, this solar-powered marvel consumes no electricity for static image retention (≤0.01W standby) and becomes more readable under direct sunlight. Powered by a massive 45AH LiFePO4 battery and monocrystalline solar panel, the S315ECO operates 100% off-grid for months. Ideal for smart bus stops, remote retail price tags, or corporate campus directories, this Android 7.1 display offers unprecedented deployment freedom and near-zero operating costs.

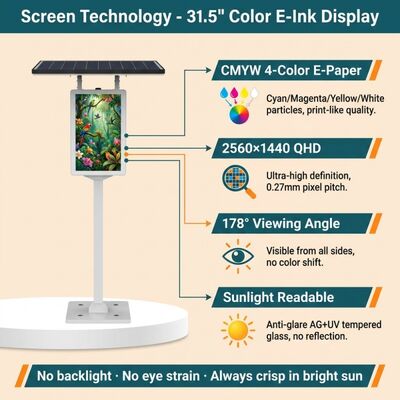

- CMYKW 4-Color E-Paper (Print-Like Quality): Utilizes Cyan, Magenta, Yellow, and White particles to produce rich, vibrant, anti-glare images. Delivers true paper-like viewing experience without backlight bleed.
- QHD (2560 ×1440) Ultra-High Definition: With 0.27mm pixel pitch and 178° ultra-wide viewing angle, every detail of maps, schedules, and promotions is razor-sharp from any direction.

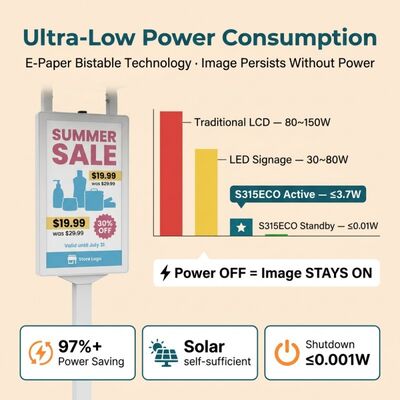

- Ultra-Low Power & Bistable Technology: Active refresh consumes only ≤3.7W, while static standby drops to ≤0.01W. Image stays on screen indefinitely with zero energy draw when powered OFF.

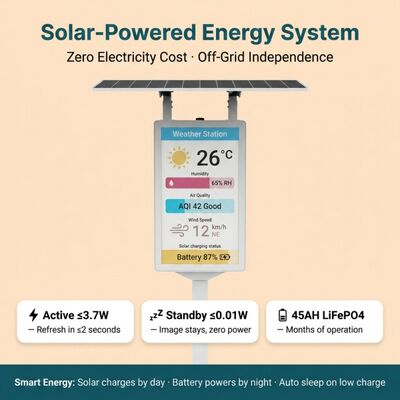

- Massive 45AH LiFePO4 Solar System: Integrated with 1.5m x 1.5m monocrystalline solar panel and MPPT controller. Stores enough energy to operate for months without direct sunlight.

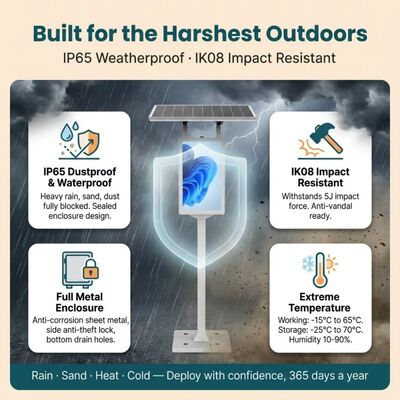

- Rugged IP65 & IK08 Protection: Full anti-corrosion sheet metal enclosure, sealed ports, side anti-theft locks, and bottom drain holes. Withstands heavy rain, dust, sand, and deliberate impact (5-joule).
- Smart Remote Management (WiFi+4G): Update content in under 2 seconds via mobile APP, U-disk (offline), or cloud CMS. Supports API/SDK integration for real-time data feeds.
- Sunlight Readable & Eye-Friendly: No backlight means zero blue light hazard and zero glare. AG+UV tempered glass enhances contrast as ambient brightness increases.
- Versatile VESA Mounting: Standard 100×100mm VESA pattern allows for easy wall, pole, or ceiling installation with quick deployment and hardware flexibility.
- Zero Electricity Cost, 97%+ Power Saving: Slash operating expenses. Compared to 150W LCD, saves over 97% in energy consumption. No grid connection means no monthly bills or electrical permits.
- Deploy Anywhere, Literally: Without power cables, place displays at remote bus stops, rural community boards, park entrances, or construction sites where grid power is unavailable.
- 100% Reliable, Even Offline: E-paper's bistable nature guarantees critical information remains visible during network outages or complete power failures. No blank screens.
- Attract Attention with Color: Move beyond black and white. Use CMYKW color for retail promotions, route maps, and public notices to increase engagement without increasing power consumption.
- Fast, Flexible Content Updates: Change content in under 2 seconds from your phone via 4G, or use simple USB drive for air-gapped security. Perfect for dynamic pricing and real-time updates.
- North America & Europe (Smart Transit Hubs): Real-time bus/train schedules with color-coded routes, weather updates, and emergency alerts at premium transit stations.
- Middle East (High-Glare Environments): Retail mall wayfinding and promotional displays that remain crisp under intense desert sun. Anti-glare glass and reflective e-paper technology thrive where LCDs wash out.
- Southeast Asia (Off-Grid & Humid Climates): Remote resort area maps, eco-park guidance boards, and floating market price displays. IP65 protection handles monsoon rains while solar independence eliminates unreliable grid power.
- Global System Integrators (Corporate & Retail): Indoor/outdoor corporate directory signage, digital menu boards for drive-thrus, and seasonal sale posters that can be updated remotely across multiple locations instantly.

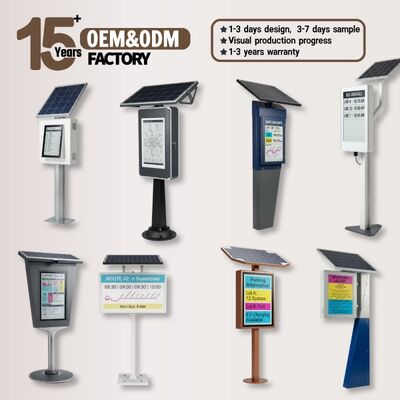

We are the source factory, not a trading company. We empower brands, system integrators, and project contractors to win bids with fully customized solutions.
- Low MOQ (10 Units): Start your pilot project or tender fulfillment with just 10 units.
- Full Cosmetic Customization: RAL/Pantone color matching for metal enclosure, laser-engraved logos, custom side prints, and mounting bracket modifications.
- Software & CMS Branding: White-label our mobile APP and CMS. Pre-load your proprietary Android APK. Integrate your own API keys for real-time data feeds.
- Hardware Flexibility: Custom screen sizes (from 13" to 42"), larger battery banks (up to 100AH), and higher wattage solar panels available.
- Rapid Lead Time: 15-25 business days for OEM orders. Global shipping with secure, anti-vandal packaging.
- True Factory Direct Pricing: Work directly with engineers and production line. No middleman margins. Best cost for highest BOM.
- 15+ Years in Commercial Displays: Expertise in thermal management, ingress protection (IP65), and outdoor durability proven in thousands of global installations.
- Certification Ready: Full CE, FCC, RoHS, IP65 (IEC 60529), and IK08 (IEC 62262) test reports provided for public tenders and compliance needs.
- Proven Logistics to USA/EU/ME/SEA: Handle all export documentation, secure foam-and-wood crate packaging, and offer door-to-door shipping support.
