P1.8 P1.53 P1.25 GOB LED Podium Screen 320x960mm Novastar Async Lockable Cabinet Casters Stage Install
Product Details
| Product Type: | LED Lectern Display (Podium & Digital Signage) | Pixel Pitch: | P1.8 / P1.53 / P1.25 (Optional) |
|---|---|---|---|
| Display Size (WxH): | 320x960mm (1x6) / 640x960mm (2x6) / 480x960mm (3x3) | Full Unit Size (WxH): | 324 X 1145.51mm (standard) / 644 X 1145.51mm (2x6) |
| Module Size: | 320 X 160 X 5.2 Mm | LED Chip Type: | SMD1212 (P1.8 / P1.53) / SMD1010 (P1.25) |
| Refresh Rate: | 3840 Hz | Cabinet Material: | Steel With Powder-Coat Finish |
| Cabinet Security: | Lockable Rear Door With Key | Connectors: | Aviation Power Plug + Aviation Signal Plug (Industrial Grade) |
| Mobility: | Universal Lockable Casters + Adjustable Leveling Feet | Unit Weight: | 80 Kg (1x6) / 106 Kg (3x3) / 124 Kg (2x6) |
| Packaging Size: | 860 X 670 X 1420 Mm | Control System: | Novastar Async (Default) / Mooncell (Optional) |
| Display Orientation: | Portrait (Vertical Curved) | Warranty Period: | 2 Years (Panel, Power Supply, Novastar Control Card) |
| Highlight |
Novastar Async Lockable Cabinet,320x960mm Curved GOB Panel,Aviation Grade Signal Connector |
||
Product Description

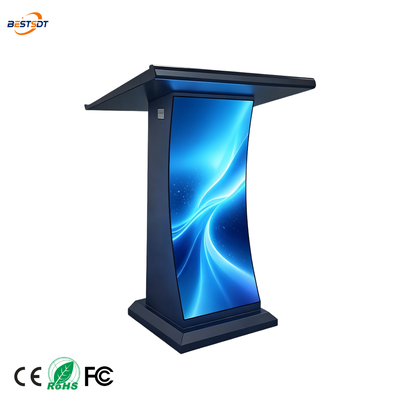

LED Lectern Display P1.8 GOB | 320x960mm Curved Panel | Novastar Async | Lockable Cabinet | Stage & Auditorium Install
Product Overview
Engineered for permanent and semi-permanent stage installations, this LED Lectern Display integrates a 320x960mm curved flexible GOB LED panel into a reinforced steel cabinet with lockable rear access and industrial aviation-grade connectors. The Novastar asynchronous control card runs content independently without a PC, while adjustable leveling feet and universal casters provide stable, vibration-free operation on any stage floor surface or venue type.
Key Specifications
- Model Config: P1.8 GOB 1x6 (320x960mm) / 2x6 (640x960mm) / 3x3 (480x960mm)
- Full Unit Size (WxH): 324 x 1145.51mm (standard) / 644mm wide (2x6 config)
- Total Weight: 80kg (1x6) / 124kg (2x6) / 106kg (3x3)
- LED Chip: SMD1212 (P1.8/P1.53) / SMD1010 (P1.25)
- Drive Method: 43/s (P1.8) | 52/s (P1.53) | 64/s (P1.25)
- Refresh Rate: 3840Hz | Connectors: Aviation power + signal plugs
- Cabinet: Steel powder-coat, lockable rear door with key
- Mobility: Universal lockable casters + adjustable leveling feet
- Packaging: 860 x 670 x 1420mm (sea / air freight compatible)
Core Advantages

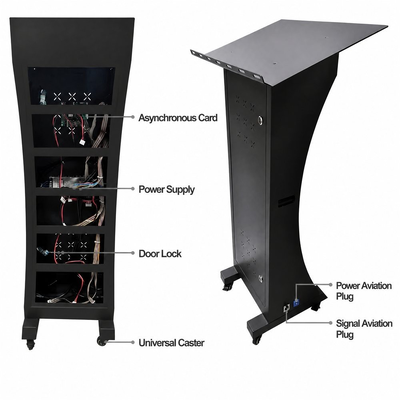

- Lockable Rear Cabinet - Keyed steel door secures control card, PSU, and all internal wiring from unauthorized access; essential for rental fleets, shared venues, and government installations with multiple operators.
- Aviation-Grade Connectors - Industrial circular power and signal aviation plugs resist vibration and accidental disconnection, eliminating signal-loss risk during live event operation or unit repositioning.
- Three Panel Width Options - 1x6 (320mm), 2x6 (640mm), and 3x3 (480mm) module arrangements match display impact to venue scale and per-unit budget without requiring a custom cabinet order.

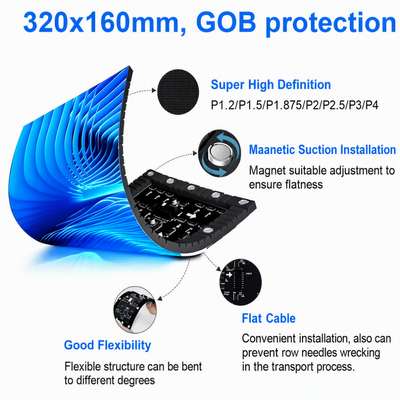

- Magnetic Module Snap Alignment - GOB modules mount via calibrated magnetic suction, auto-aligning to surface flatness. Tool-free field replacement: swap a single module in minutes with one technician and no soldering.
- Anti-Slip Lectern Desktop - Wide flat top with non-slip edge holds 15-inch laptops, A4 documents, and tablets securely throughout the presentation session.
Applications

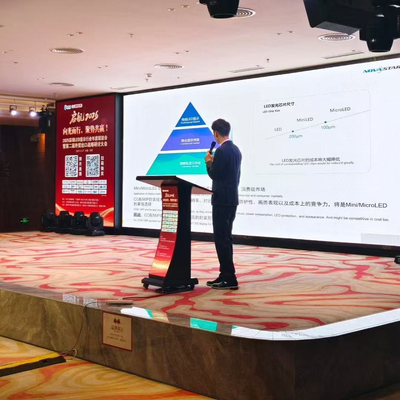

University Auditorium - Government Press Room - Corporate Training Center - Hotel Grand Ballroom - International Conference Center - Stage Performance
Customization & Support
Panel config, pixel pitch, and cabinet finish customizable per OEM order. Engineering drawings and installation guides provided. 48-hour aging run and module calibration completed before shipment. 2-year warranty: panel, PSU, control card. Front-access maintenance design.
