GOB Full Protection LED Podium Screen Curved Flexible Panel Plug Play Wireless Async Novastar Conference
Product Details
| Product Type: | LED Lectern Display (Podium & Digital Signage) | LED Protection: | GOB (Glue-on-Board Full Encapsulation) |
|---|---|---|---|
| Ingress Protection: | IP43 (Dust & Water Spray Resistant, Front Surface) | Data Cable Type: | Flat Ribbon Cable (Anti-Damage, No Pin Connector) |
| Module Mounting: | Magnetic Suction (Tool-Free Installation & Replacement) | Maintenance Access: | Front-Access Design (No Cabinet Disassembly Required) |
| Pixel Pitch: | P1.25 / P1.53 / P1.8 (Optional) | Refresh Rate: | 3840 Hz |
| Grayscale Depth: | 12-16 Bit | Cabinet Material: | Steel With Powder-Coat Finish |
| Cabinet Security: | Lockable Rear Door With Key | Connectors: | Aviation Power Plug + Aviation Signal Plug (Industrial Grade) |
| Control System: | Novastar Async (Default) / Mooncell (Optional) | Average Power: | 50-200 W |
| Input Voltage: | 100-240 VAC, 3.5A Max, 50/60 Hz | Warranty Period: | 2 Years (Panel, Power Supply, Novastar Control Card) |
| Highlight |
GOB Full Surface Encapsulation,Tool Free Magnetic Module Swap,Front Access Maintenance Design |
||
Product Description
LED Lectern Display | GOB Full Protection | Curved Flexible Panel | Plug & Play | Front-Access Maintenance | Conference Podium
Product Overview

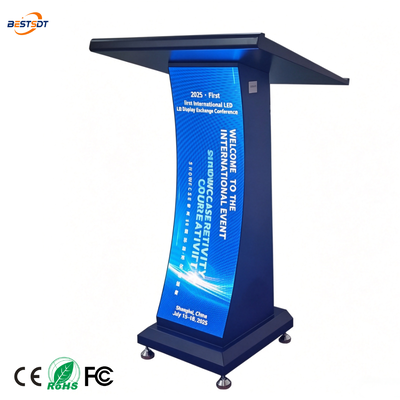

This LED Lectern Display integrates GOB full-surface encapsulation with a curved flexible LED architecture to deliver a presentation podium where the display is sealed, impact-resistant, and fully serviceable from the front, with no cabinet disassembly required on-site. Designed for buyers who operate rental fleets, multi-venue touring production, or permanent installations where minimizing maintenance downtime and unauthorized-access risk is a commercial priority.
Key Specifications
- LED Protection: GOB (Glue-on-Board) full encapsulation, IP43 front surface
- Panel: Curved flexible substrate, 320x160x5.2mm per module
- Cable Type: Flat ribbon cable (replaces round-pin connectors between modules)
- Module Mounting: Magnetic suction, tool-free install and swap
- Display Resolution: 172x516 Dot (P1.8) / 256x768 Dot (P1.25)
- Refresh Rate: 3840Hz | Grayscale: 12-16 Bit
- LED Type: SMD1212 (P1.8) / SMD1010 (P1.25)

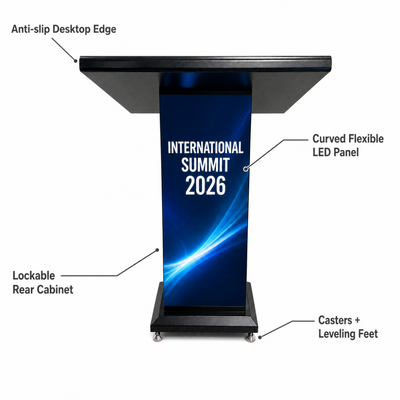

- Cabinet: Lockable rear door, steel + powder-coat finish
- Connectors: Aviation-grade power + signal plugs (rear panel)
- Power Supply: Industrial-grade switching PSU, 100-240VAC wide input
Core Advantages
- GOB Full Encapsulation - Resin coating bonds across the entire LED surface, removing exposed pins and protecting against accidental contact, dust, and humidity, critical for high-traffic public venues and long-term outdoor-adjacent deployments.
- Flat Ribbon Cable Architecture - Low-profile flat data cables between modules replace traditional round-pin harnesses, preventing connector damage in transit and reducing field fault rates on rental units that move frequently.

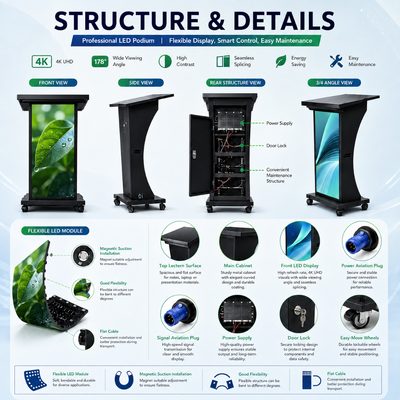

- Front-Access Maintenance - Control card, power supply, and LED modules are all accessible from the front face without moving or disassembling the cabinet. On-site service time is measured in minutes, keeping rental turnaround times short.
- Tool-Free Magnetic Module Swap - Any single GOB module can be field-replaced by one technician with no soldering or special tooling; magnetic mounts re-align automatically to panel flatness tolerance.
- Industrial PSU Stability - High-grade switching power supply with wide-voltage input protects the LED panel from voltage spike damage in venues with unstable or non-standard power infrastructure.
Applications

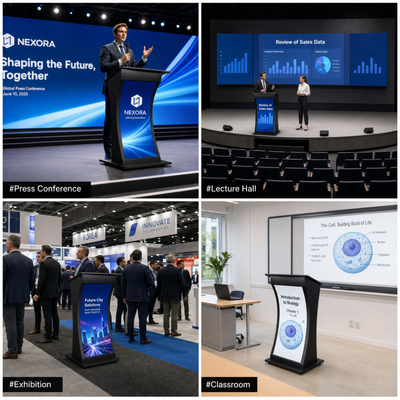

Trade Show Rental Fleet - Conference Center Permanent Install - University Lecture Theater - Hotel Multi-Function Room - Government Briefing Room - Touring Event
Customization & Support
GOB modules available P1.25 to P4. Cabinet dimensions and panel layout customizable for OEM orders. Every unit: 48-hour aging run + module uniformity calibration. 2-year full system warranty. Technical documentation and remote diagnostic support provided at no extra cost.
