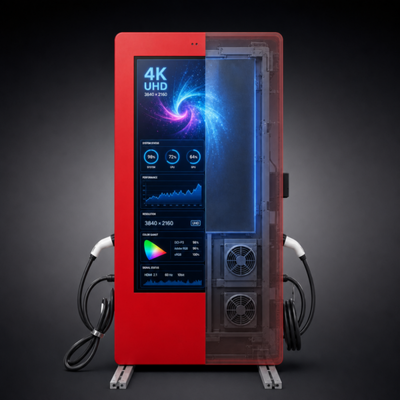

19.2kW AC Level 2 EV Charger SAE J1772 Outdoor LCD Advertising Display OCPP 1.6J 80A US Standard

The 19.2kW AC Level 2 EV Charger with 55-inch 4K advertising display is designed for commercial parking lots, retail centers, hotels, office buildings, fleet depots and destination charging sites. It combines high-power AC Level 2 charging with a large-format digital media screen, remote content management, OCPP network management and robust outdoor protection.

• High-Power AC Charging: Up to 19.2kW output, 80A maximum current, suitable for US 208/240VAC single-phase infrastructure.
• 55-Inch 4K UHD Advertising Display: Brand advertising, charging status, promotional campaigns and station branding in one screen.

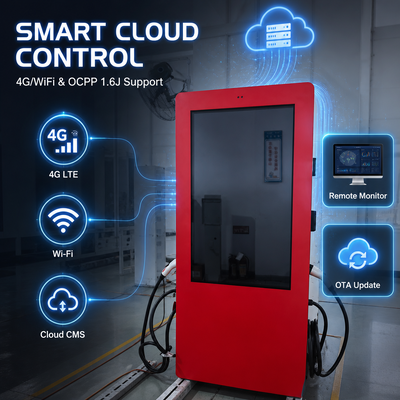

• Smart Network Control: Ethernet, Wi-Fi and 4G LTE options; remote monitoring, scheduled charging, firmware OTA and fault diagnostics.
• Advanced Load Management: Dynamic load balancing, current limitation, time-of-use charging strategy and energy usage reports.
• Commercial Payment Ready: RFID card, QR code, app authorization and optional POS/payment module integration.
• Safety-Oriented Design: Emergency stop, ground fault protection, leakage protection, surge protection and over-temperature protection.

• 55-inch commercial advertising display, 3840 x 2160 4K UHD resolution
• 1500-2500 nits brightness optional, sunlight-readable configuration
• Optional industrial capacitive touch screen, tempered anti-glare glass
• Cloud CMS: remote publishing, scheduling, group management and playback logs
• Optional camera for security monitoring and customer assistance

• OCPP 1.6J standard; OCPP 2.0.1 optional
• Ethernet / Wi-Fi / 4G LTE network options
• RFID card, mobile app, QR code and plug-and-charge workflows
• Remote start/stop, real-time status, fault alarm, firmware OTA
• Charging records, energy usage, user sessions and advertising playback reports

• Over-voltage, under-voltage, over-current, short-circuit, leakage, surge and over-temperature protection

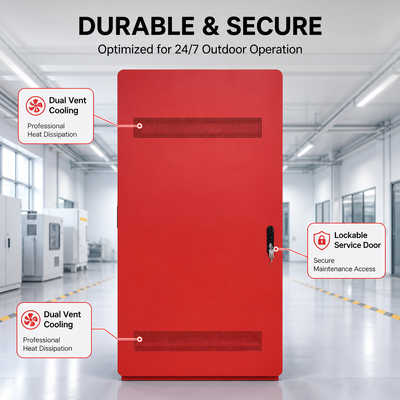

• Emergency stop button option, IP55 protection, IK10 impact resistance
• Operating temperature -30 to +50 Degree C; storage -40 to +70 Degree C
• Designed with reference to UL 2594, UL 2231, NEC Article 625, FCC and Energy Star

Commercial parking lots, retail centers, shopping malls, hotels, office campuses, fleet depots and highway destination charging sites.

Manufacturer: Shenzhen Best Special Display Technology Co., Ltd.
Address: Building A, Hanhaida Industrial Zone, Yutang Street, Guangming District, Shenzhen, Guangdong Province, China
