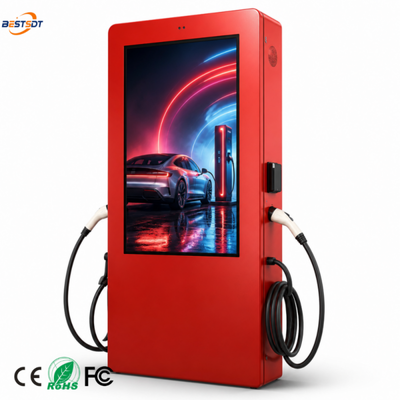

180kW 240kW 360kW 480kW DC HPC EV Charger CCS2 Outdoor LCD Advertising Display OCPP 1.6J

The High Power DC Advertising Fast Charger Series covers 180kW, 240kW, 360kW and 480kW power classes with a large 55-inch front advertising display integrated into the charger cabinet. Designed for commercial and public EV charging sites that require high charging throughput, strong brand visibility and intelligent network operation.

• High-Power Modular Platform: 180kW to 480kW scalable power module architecture for different site capacities.
• 55-Inch Advertising Machine: Brand ads, site information, charging instructions, promotions and operator media content.
• Wide-Voltage EV Support: 150-1000Vdc output platform supports current and future high-voltage EV platforms.

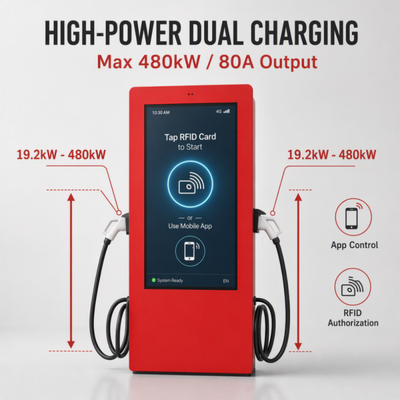

• Dynamic Power Sharing: Multi-gun versions allocate power according to vehicle demand, SOC and site strategy.

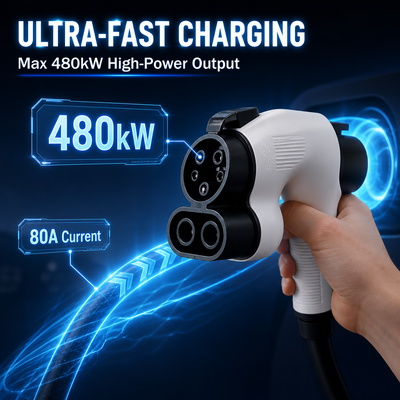

• Liquid-Cooled Option: Up to 500A per gun for ultra-high-power HPC use cases.

• 55-inch front advertising display, 1920 x 1080 standard, 4K optional
• 1500-2500 nits brightness, capacitive touch optional
• Tempered, anti-glare or laminated safety glass options
• USB local update, LAN update, cloud CMS remote publishing
• Loop playback, scheduled playback, split-screen and site group publishing

• OCPP 1.6J standard; OCPP 2.0.1 optional
• ISO 15118 Plug & Charge optional
• Remote monitoring: real-time status, voltage, current, power, energy, SOC and fault codes
• OTA firmware upgrade, dynamic load management, peak shaving
• Cybersecurity: encrypted communication, role-based access, firewall/VPN options

• Input/output over-voltage, over-current, short-circuit, phase loss protection
• Continuous DC insulation monitoring, Type B RCD/RCM for EU projects
• Surge protection, over-temperature monitoring, emergency stop button
• Door interlock, grounding protection, connector lock, optional smoke/fire sensors

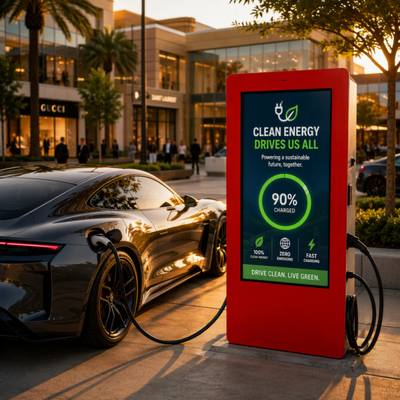

Highway service areas, urban public charging networks, shopping malls, office parks, hotels, dealership charging zones and fleet depots.
