Outdoor LED Poster Display 640x1600mm P2.5 4500nits IP65 Weatherproof Advertising Screen

1 Set
MOQ
USD 850 - 1,250 / Set
Price
Outdoor LED Poster Display 640x1600mm P2.5 4500nits IP65 Weatherproof Advertising Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Pixel Pitch: P2.5
Cabinet Size: 640 X 1600 Mm
Resolution: 256 X 640 Pixels
Pixel Density: 160000 Dots/sqm
Brightness: 4500 Nits
Refresh Rate: 3840 Hz
Grey Scale: 16384 Levels
Viewing Angle: 140 / 140 Degrees
IP Rating: IP65 Front And Rear
Power Consumption: 600W Peak / 300W Average
Operating Temperature: -0 To 80 C
Lifespan: 50000 Hours
Control System: MC100 1G+32G, Wi-Fi 2.4G/5G
Max Cascade Cabinets: 20 Cabinets
Installation: Floor Standing Or Mobile, Left-right Splicing
Warranty: 2 Years
Highlight:

Outdoor LED Poster Display 640x1600mm

,

P2.5 4500nits LED Poster Display

,

IP65 Weatherproof LED Advertising Screen

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: OEM (buyer brand accepted)
Certification: CE / RoHS / FCC optional
Model Number: OP-6401600-P2.5
Payment & Shipping Terms
Packaging Details: Plywood case and flight case with shock-proof foam
Delivery Time: 7 working days for stock, 15-25 days for production
Payment Terms: T/T,L/C,Western Union
Supply Ability: 300 Sets per Month
Product Description

640x1600mm Outdoor LED Poster Display P2.5 4500nits IP65 Weatherproof

The 640 x 1600mm outdoor LED poster display is built for rental agencies, event organizers and retail brands that need a bright, weatherproof digital billboard deployed in minutes. With P2.5 pixel pitch it delivers 160000 dots per square meter, a native resolution of 256 x 640 and 4500 nits of brightness, so promotional content stays readable under direct daylight.

Key Features

  • 4500 nits sunlight readable brightness
    The screen stays legible in direct daylight, ideal for street facing plazas, gas stations and roadside retail where competitors fade out.
  • IP65 rated front and rear
    Full gasket sealing on both faces handles rain, dust and wash-down cleaning in tropical and coastal markets.
  • GOB protected LED surface
    The glue-on-board and mask layer absorbs impact during transport and set-up, cutting dead pixel claims on rental fleets.
  • Foldable cabinet, fast deployment
    Two operators can lift the cabinet out of a flight case and have it running in minutes, no crane or scaffolding required.
  • Smart synchronous and asynchronous control
    Play content offline from internal storage, push updates over Wi-Fi, or mirror a PC over HDMI for live event feeds.

Technical Specifications

Product TypeFoldable outdoor LED poster display (floor standing / mobile)
Cabinet Size640x1600 mm
Pixel PitchP2.5
LED Package1415 SMD, GOB / mask protected surface
Module Size320 x 160 x 15.5 mm
Resolution256 x 640 pixels
Pixel Density160000 dots / sqm
Brightness4500 nits, software adjustable
Refresh Rate3840 Hz or above, flicker free for video recording
Grey Scale16384 levels, 14-16 bit colour processing
Viewing Angle140 degrees horizontal / 140 degrees vertical
Power Consumption600 W peak / 300 W average
Protection ClassIP65 front and rear
Operating Temperature-0 to 80 C (storage -40 to 60 C)
Operating Humidity10% - 90% RH
Lifespan50000 hours
Control SystemMC100 1G+32G standard, B6L / B8L / TB40 optional, Wi-Fi 2.4G/5G

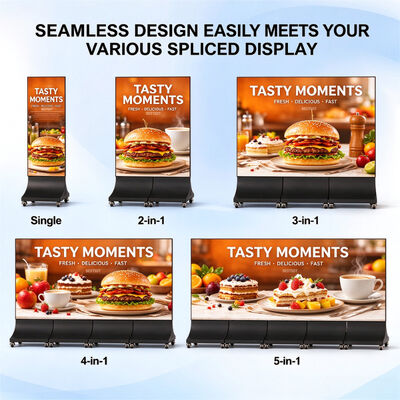

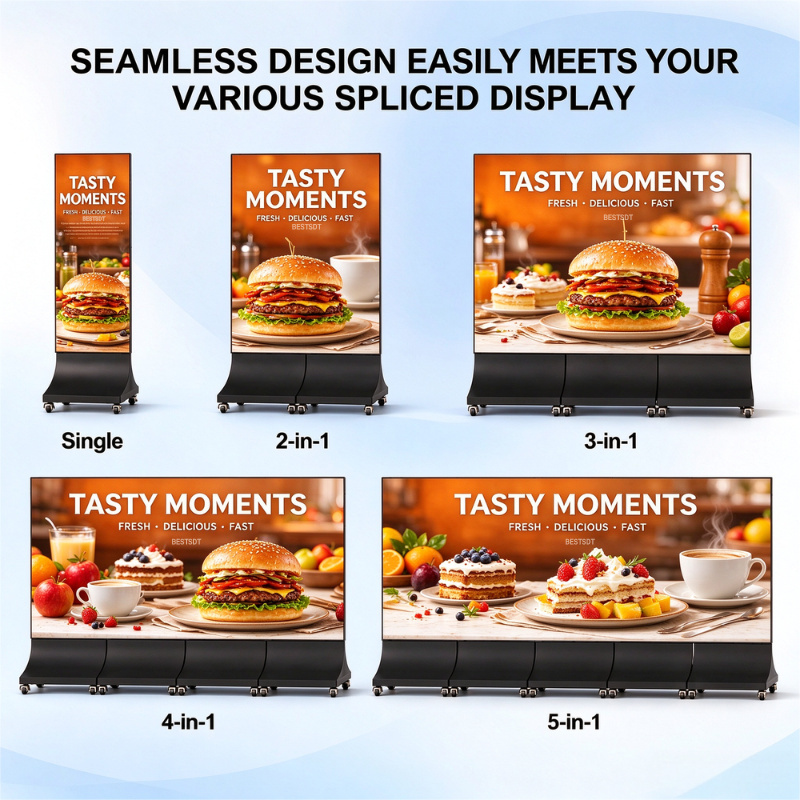

Cascade SplicingUp to 20 cabinets auto splicing over HDMI, left-right and cascade connection
Net Weight50 kg
Packing Weight120 kg with flight case or plywood case
Signal TransmissionCat5e under 100 m, single mode fiber under 10 km

Applications

Outdoor brand activation, shopping mall plaza advertising, exhibition and trade show booths, sports and public event promotion, restaurant and retail storefront signage, real estate project promotion, mobile advertising trailers and rental fleets.

Why Buyers Choose This Model

This is the workhorse size for street level outdoor advertising. The 640x1600 mm footprint fits sidewalks, store entrances and event aisles, while the 4500 nit panel removes the wash-out problem that kills return on outdoor campaigns in summer months.

Ordering Information

Pixel pitch options: P1.25 / P1.538 / P1.86 / P2.0 / P2.5. Cabinet size options: 640 x 1600 mm and 640 x 1920 mm. Custom cabinet size, OEM branding and ODM software integration are available on request. Contact our sales team for a quotation, datasheet and shipping cost to your port.
