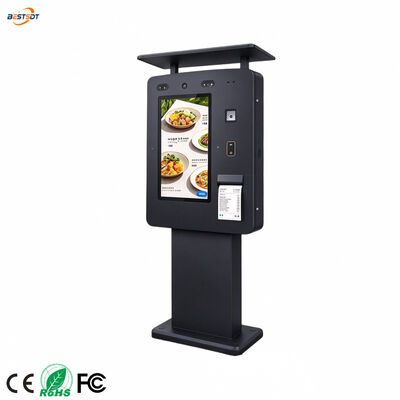

Outdoor Self Ordering Kiosk for Drive Thru Lanes and Outdoor Payment Points
outdoor self ordering kiosk is built for drive thru lanes, outdoor restaurant pickup areas, parking lots, EV charging bays and fuel station forecourts where customers complete ordering and payment in the open air. The 43 inch landscape main display faces the customer for menu browsing, item selection and order confirmation, while a 21.5 inch secondary screen faces the operator or staff side for order status, transaction confirmation and queue visibility. This two-screen layout keeps the customer and the service staff on the same transaction without extra hardware or cabling between positions. The sealed IP65 enclosure uses cold-rolled steel sheet with a toughened glass front, weatherproof gaskets and a rain-shielded display opening, so rain, dust and direct sun exposure do not interrupt daily operation. Panels are supplied at 2000 cd/m² to 2500 cd/m² with automatic brightness control, keeping the interface readable in daylight and dimming at night to reduce light pollution at roadside sites. A 10-point PCAP capacitive touch layer supports gloved and wet-finger input, so customers can operate the terminal in light rain or cold weather. Payment hardware is integrated inside the same cabinet: a QR code scanner, IC card reader, NFC reader and MSR module can be combined according to the local payment mix, and an 80mm thermal receipt printer with auto cutter issues tickets and receipts at the point of order. The floor standing base carries the weight of the cabinet and the display assembly, allowing the unit to be bolted to a concrete plinth or anchored with an optional anti-tip bracket for public areas. For project procurement the cabinet can be adapted around the approved drawing: screen orientation, secondary screen position, interface height, access door direction, ventilation path, cable routing, branding panel and colour finish are all specified before production. Android, Windows and Linux platforms are available with SDK support, so the terminal can run the buyer's ordering, POS or parking payment software subject to compatibility confirmation. The same cabinet platform is used across single-site installations and multi-location rollouts, which keeps spare part lists, drawing revisions and installation preparation consistent for chain operators, kiosk distributors and system integrators.
Key Features

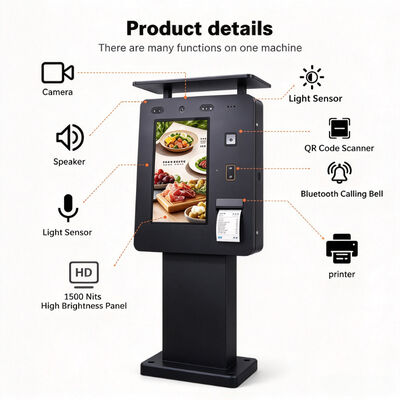

- Display layout: 43 inch customer screen plus 21.5 inch operator screen in one cabinet

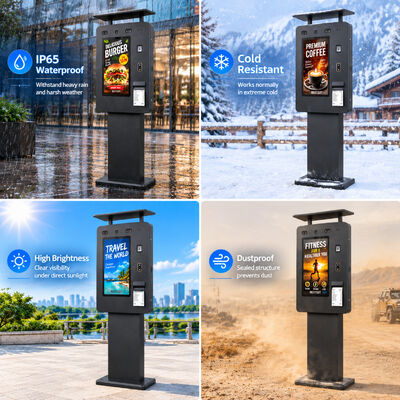

- IP65 waterproof and weatherproof enclosure for outdoor drive thru, parking and roadside sites
- 2000 cd/m² to 2500 cd/m² high brightness panels with automatic light sensing

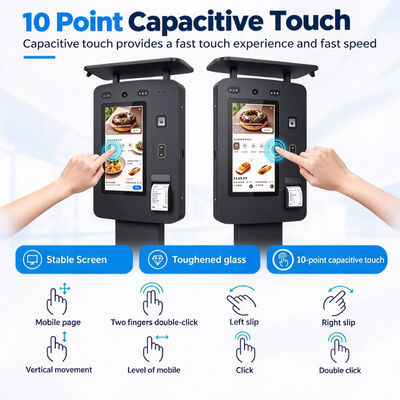

- 10-point PCAP capacitive touch supporting gloved and wet-finger operation
- Integrated 80mm thermal receipt printer with auto cutter and paper-low detection
- Payment module options: QR code scanner, IC card reader, NFC reader and MSR
- Intel Core i3 / i5 / i7 or RK3288 / RK3566 / RK3399 platform selection
- Android, Windows and Linux operating systems with SDK support for software integration
- Cold-rolled steel housing, metal case and toughened glass panel construction
- Floor standing base with anchor points, customizable colour, logo and surface finish
- 24/7 continuous operation with service access door and modular component bay
Technical Specifications
Product TypeOutdoor dual screen self ordering kiosk
Mounting TypeFloor standing
Main Screen43 inch, 1920x1080
Secondary Screen21.5 inch, 1920x1080
Brightness2000 cd/m² / 2500 cd/m²
Touch Screen10-point PCAP capacitive touch
CPUIntel Core i3 / i5 / i7; RK3288 / RK3566 / RK3399 quad core
RAM2GB / 4GB / 8GB DDR3
Storage32GB / 64GB / 128GB SSD or eMMC
Operating SystemAndroid / Windows / Linux
Printer80mm thermal receipt printer with auto cutter
Payment ModuleQR code scanner, IC card reader, NFC reader, MSR
MaterialCold-rolled steel sheet, metal case, toughened glass panel
IP RatingIP65
Camera FunctionFacial recognition, product scanning, surveillance
Optional PartsA4 printer, barcode printer, barcode reader, fingerprint scanner, POS solution, cash acceptor
ColorCustomizable
Warranty1 year
ApplicationDrive-through, outdoor restaurant, parking lot, EV charging station, gas station, food court, cafe
Dual Screen Working Layout
The main 43 inch screen is mounted at standing eye level for menu browsing, item selection, upsell prompts and order confirmation. The 21.5 inch secondary screen is fitted on the opposite face of the same cabinet so staff or a second customer can follow the order sequence, review the basket and confirm payment status without walking around the unit. Both screens are driven from a single control board, which simplifies installation, reduces cabling between positions and keeps the bill of materials compact for multi-site rollouts.
Outdoor Protection And Site Preparation

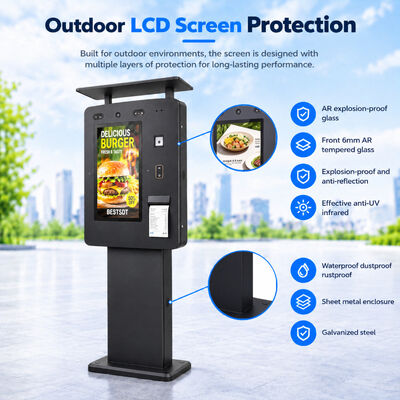

The IP65 cabinet uses sealed gaskets on the display opening, service door and printer slot, with a rain shield above the main screen and a drainage path for the printer outlet. For installation, four anchor points in the floor base are prepared for chemical anchors or a cast-in concrete plinth, and the cable entry can be routed from the rear or from the base to suit the site layout. Screen position, interface height, access direction and branding area can be reviewed on the approved drawing before mass production.
Applications
The dual screen outdoor kiosk is specified for quick service restaurant drive thru lanes, outdoor ordering points, parking payment positions, EV charging bays, fuel station forecourts and outdoor food court counters. It is also supplied to kiosk distributors, outdoor payment system integrators and restaurant equipment buyers who need repeatable cabinet construction with coordinated OEM/ODM production.
FAQ
Q: Can both screens run different software interfaces?
Yes. The main and secondary displays are driven from the same platform and can be configured to show customer ordering content on one screen and staff order status or payment confirmation on the other.
Q: Is the kiosk suitable for direct rain and strong sunlight?
The enclosure is IP65 rated with sealed gaskets and a rain shield, and the 2000-2500 cd/m² high brightness panel is selected for daylight readability at roadside sites.
Q: Which payment modules can be installed?
QR code scanner, IC card reader, NFC reader, MSR and an 80mm thermal receipt printer can be combined according to the local payment mix and confirmed on the configuration list before production.
Q: Can we customize the cabinet and branding?
Yes. Dimensions, screen orientation, colour, logo, surface finish, interface height and access door direction are confirmed through drawings before production.
Q: What is the lead time for a project order?
Samples and small batches are typically prepared in 15-25 working days after drawing approval and deposit; the volume rollout schedule is confirmed with the production plan.
